Elephant Robotics: myArm M&C Embodied Humanoid Robot Compound Kit (Estimated dispatch time: 20 business days)
4011200005
myArm M & C: Robot Arm & Teach Pendant
The myArm M&C Embodied Humanoid Robot Compound Kit, combining advanced robotic arm capabilities with a mobile base, opens up a wide range of possibilities for robotics research, mobile exploration, and multi-scene applications.
e.g. Validation of Mobile-ALOHA Robot Motion Control Algorithms, Mobile Monitoring and Security, Education and Research.
Dual-arm & Enhanced Control
Equipped with sensors that track real-time motion data (position, speed, etc.), the robot arm also identifies anomalies to ensure safe operation. Additionally, its 6+1-axis design mimics human arm flexibility for versatile multi-angle and multi-directional control.
Handles Diverse Tasks
The 750mm arm length is ideal for reaching objects, while the 500g rated load and 1000g maximum load allow it to handle common household items. myArm M750 can fold clothes, sort books, brew coffee, and more.
Universal Control Hub
The myArm C650 seamlessly controls various machines, including the myArm M750, myCobot 630 (with its full harmonic motor) & Mercury X1 (with dual-arm cooperation). Its capabilities are vast, opening doors to endless possibilities.
Programming & Development
The myArm series robots are highly valuable in the fields of education and research, particularly within the widely used development environments of Python and ROS (Robot Operating System). These environments provide robust support, enabling the myArm series robots to be extensively utilized in machine learning, artificial intelligence research, complex motion control, and visual processing tasks.
Essential Functions

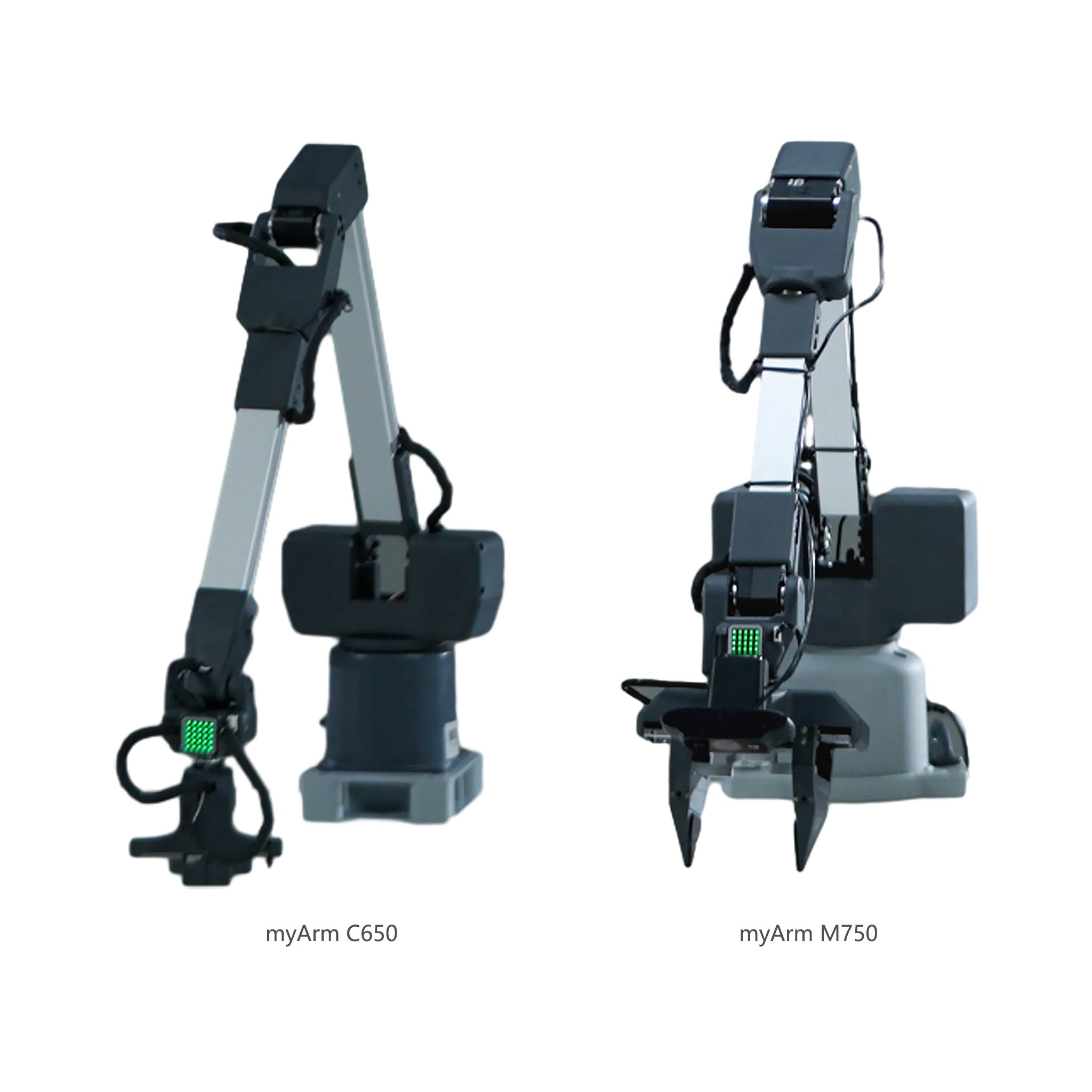

Specification Differences
| Specification | myArm M750 | myArm C650 |
|---|---|---|
| Degree of Freedom | 6+1 | 6+1 |
| Payload | 500g | |
| Working Load | 500g Load Capacity, 1000g Maximum Load | - |
| Working Radius | 750mm | 650mm |
| Total Span | 1500mm | 1300mm |
| Positioning Accuracy | ±1mm | ±1mm |
| Accuracy | 5 – 8mm | 5 – 8mm |
| Weight | 3.6kg | 1.8kg |
| Number of Steering Gears | 8 | 8 |
| Steering Gear Type | Industrial grade high-precision digital servo motor | High precision digital servo motor |
| Power Specifications | 24V9.2A | 12V5A |
| Joint Maximum Rotation | +/- 180° | +/- 180° |
| End Effector | Parallel gripper compatible with optional camera | Dual-finger touch control + dual-button operation |
| USB Connection | Type-C | Type-C |
| Atom Tip | 5x5 LED matrix | 5x5 LED matrix |
| Communication Frame Rate | >50Hz | >50Hz |
| Programming | Python + ROS | Python + ROS |
What's Included
| myArm MC Embodied Humanoid Compound Kit | myArm M&C Teleoperation Robotic Arm Kit X1 |
|---|---|
| Tracer Mobile Base X1 | |
| Tracer Intelligent Navigation Kit X1 | |
| Power Module X1 | |
| USB Data Cable X4 | |
Essential Accessories
Unbeatable Value
myStudio
Centralized Robot Management: myStudio offers firmware updates, video tutorials, and maintenance/repair information, all accessible from a one-stop platform.
